Double-Ridged Horn Antennas

pdficon large Overview Double Ridged Waveguide Horn Antennas

The broadband horn antennas BBHA 9120 offer a very low SWR in their nominal frequency range and a very broad bandwidth. The gain increases with frequency up to approx. 21 dBi, depending on the horn's size and shape. The increasing gain with frequency helps to compensate cable losses. The BBHA 9120 series is suitable for both, transmission and receiving applications. The max. allowed Input Power is only limited by the coaxial connector. The detailed manual of the calibrated test antennas includes Gain, Antenna Factor, SWR and Directional Patterns. The antenna is mounted with the 22 mm tube, equipped with a Index Ring for quick changes of polarisation without using tools. We recommend the antenna mast AM 9144 together with the mast adapter AA 9202 as accessories.





BBHA 9120 F - Broadband Horn Antenna  0.2 - 2 GHz BBHA 9120 K - High Gain Horn Antenna  0.4 - 1.6 GHz BBHA 9120 G - Broadband Horn Antenna  0.4 - 2.8 GHz BBHA 9120 E - Broadband Horn Antenna 0.5 - 6 GHz BBHA 9120 LF - Broadband Horn Antenna  0.7 - 6 GHz BBHA 9120 J - Broadband High Gain Horn Antenna  0.8 - 6.2 GHz BBHA 9120 A - Broadband Horn Antenna (0.8) 1 - 5 (10) GHz BBHA 9120 B - Broadband Horn Antenna  1 - 10 GHz BBHA 9120 D - Broadband Horn Antenna (0.8) 1 - 18 GHz BBHA 9120 C - Broadband Horn Antenna  2 - 18 (20) GHz BBHA 9120 L - Broadband Horn Antenna  3 - 40 GHz HWRD 650 - Double Ridged Horn Antenna with WG-flange 6.5-18 GHz HWRD 750 - Double Ridged Horn Antenna with WG-flange 7.5-18 GHz



BBHA 9120 A - Double Ridged Broadband Horn Antenna

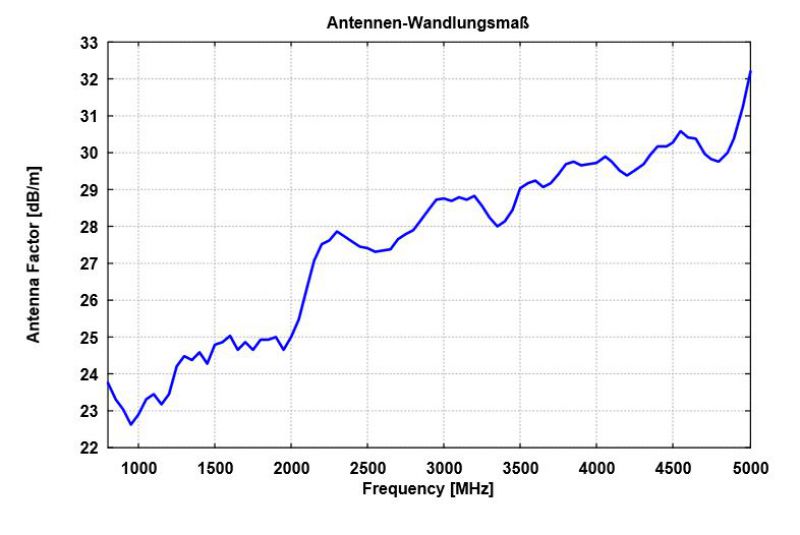

  • BBHA 9120 A - Typical Antenna Factor

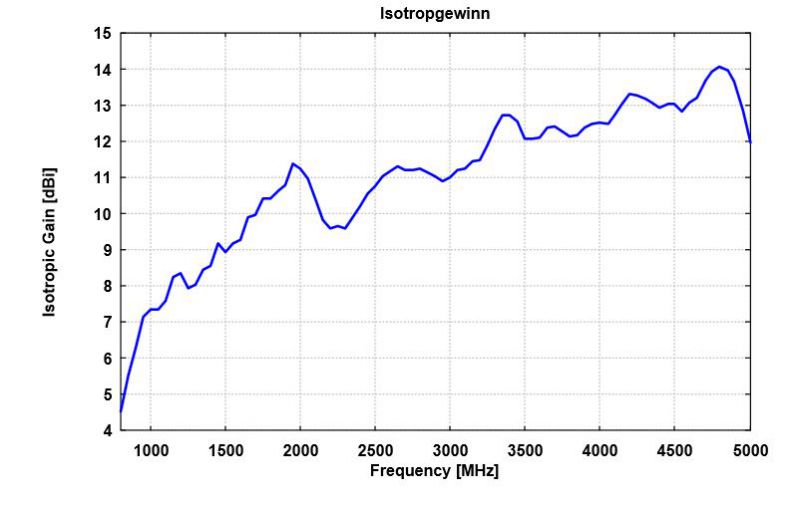

  • BBHA 9120 A - Typical Gain

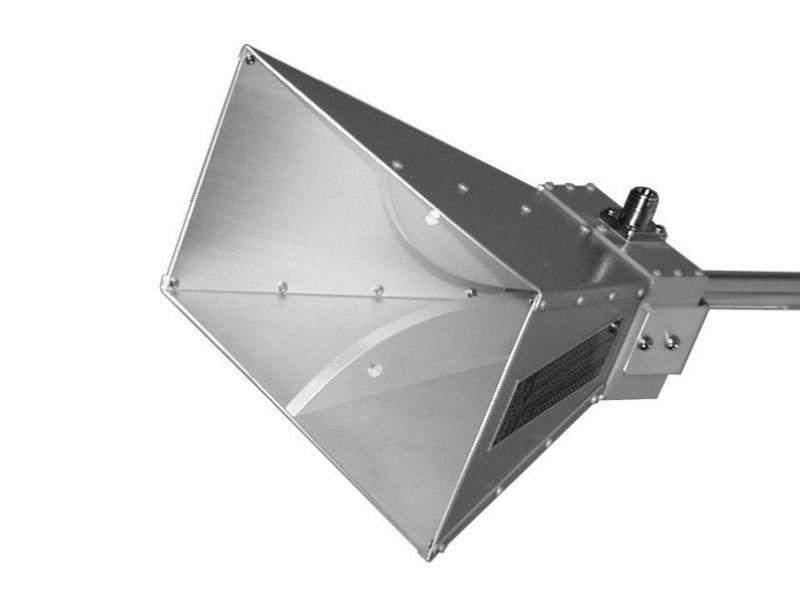

  • Schwarzbeck Broadband Horn Antenna BBHA 9120A



The broadband horn antenna BBHA 9120 A is a linear polarized double ridged horn antenna for the frequency range 800 MHz to 5 (10) GHz.







Frequency Range, nominal: 1 GHz - 5 GHz
Usable Frequency Range: 0.8 MHz - 10 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: see diagram
Connector: N
Impedance: 50 Ω nominal
Length: 220 (408) mm
Width: 245 mm
Height: 142 mm
Weight: 1.3 kg
Mounting: 22 mm Tube





Datasheet BBHA 9120A



pdficon small Radiation Pattern








BBHA 9120 B - Double Ridged Broadband Horn Antenna

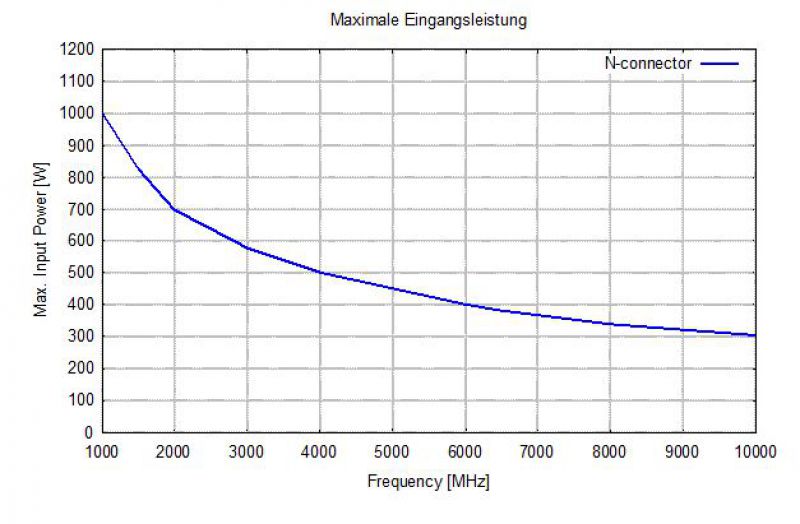

  • BBHA 9120 B - Max Input Power - N Connector

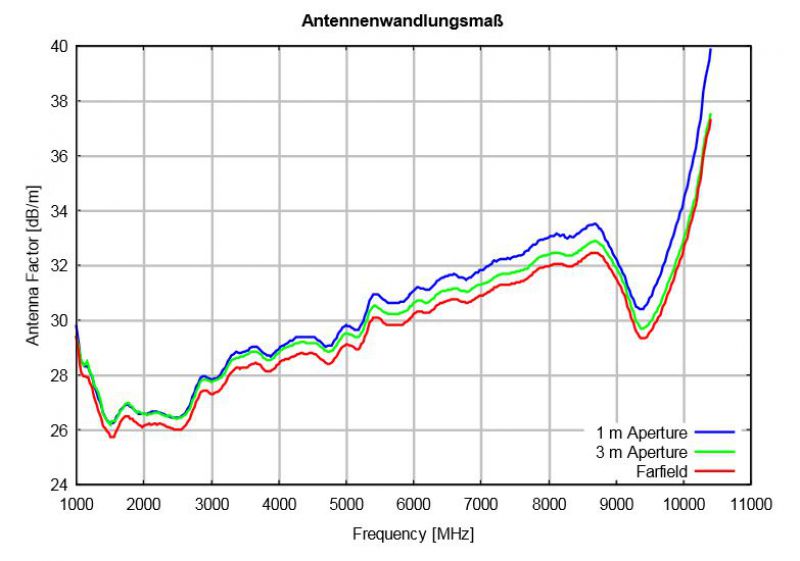

  • BBHA 9120 B - Typical Antenna Factor

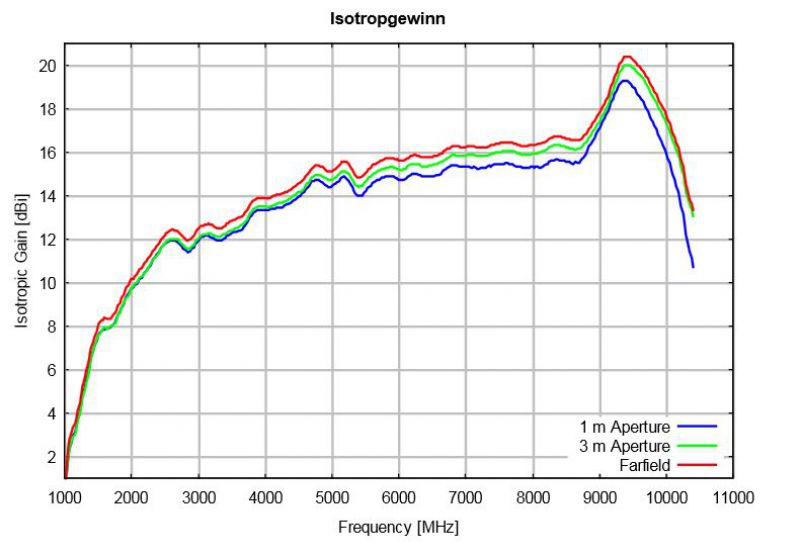

  • BBHA 9120 B - Typical Gain

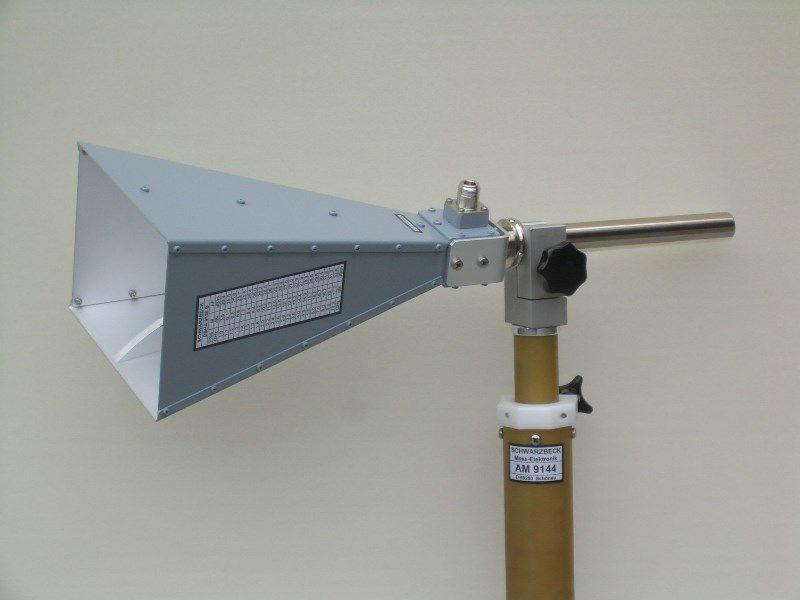

  • Schwarzbeck Broadband Horn Antenna BBHA9120B



The broadband horn antenna BBHA 9120 B is a linear polarized double ridged horn antenna for the frequency range 1 GHz to 10 (12) GHz.







Frequency Range, nominal: 1 GHz - 10 GHz
Usable Frequency Range: 1 GHz - 12 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: see diagram
Connector: N
Impedance: 50 Ω nominal
Length: 272 (482) mm
Width: 182 mm
Height: 124 mm
Weight: 1.3 kg
Mounting: 22 mm Tube





Datasheet BBHA 9120B



Radiation Pattern






BBHA 9120 C - Double Ridged Broadband Horn Antenna

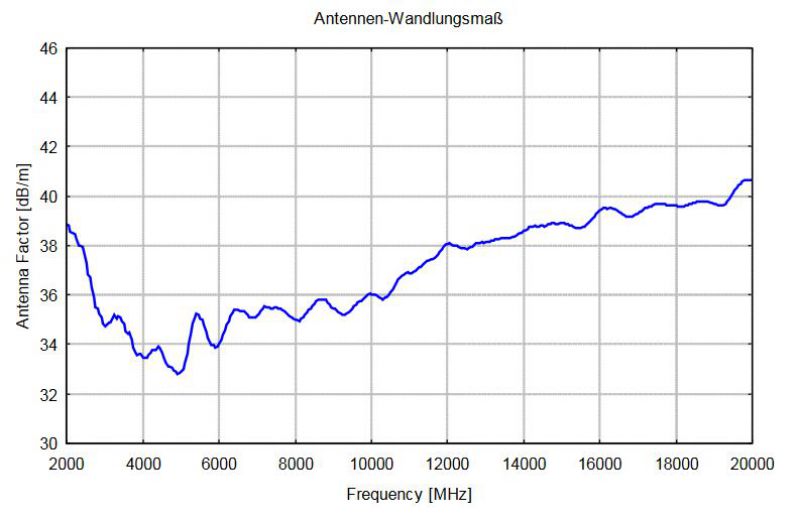

  • BBHA 9120 C - Typical Antenna Factor

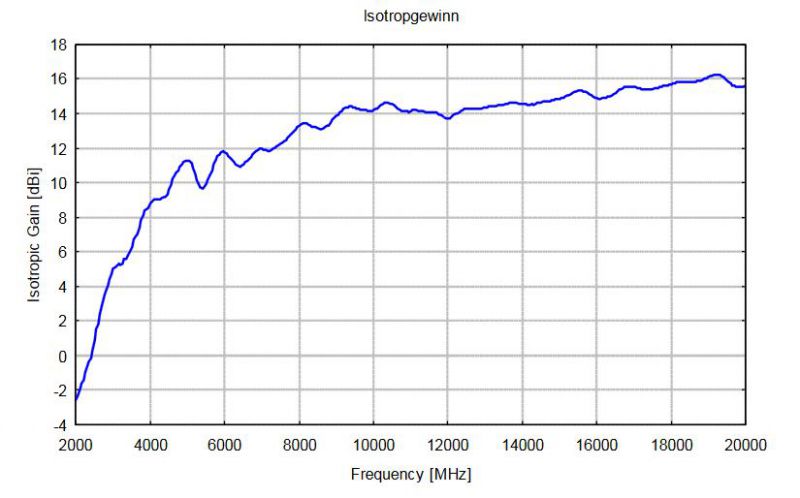

  • BBHA 9120 C - Typical Gain

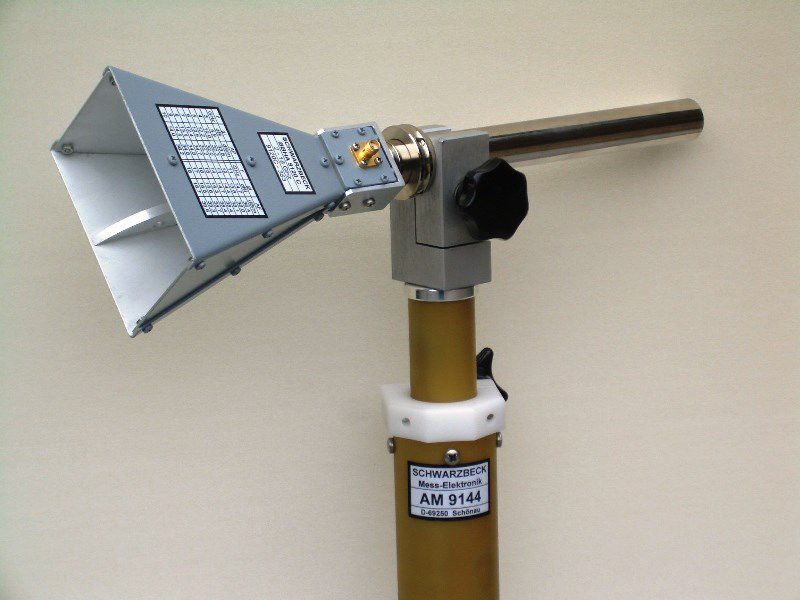

  • Schwarzbeck Broadband Horn Antenna BBHA9120c



The broadband horn antenna BBHA 9120 C is a linear polarized double ridged horn antenna for the frequency range 2 GHz to 18 (20) GHz.







Frequency Range, nominal: 2 GHz - 18 GHz
Usable Frequency Range: 2 GHz - 20 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

100 W (intermitt.)
  50 W (const.)

Connector: SMA - female
Impedance: 50 Ω nominal
Length: 140 (345) mm
Width: 98 mm
Height: 69 mm
Weight: 0.5 kg
Mounting: 22 mm Tube
Recommended Adapter:

AA 9202, AA9202 POM,
AA 9203, RA9215



Datasheet BBHA 9120C



Radiation Pattern







BBHA 9120 D - Double Ridged Broadband Horn Antenna

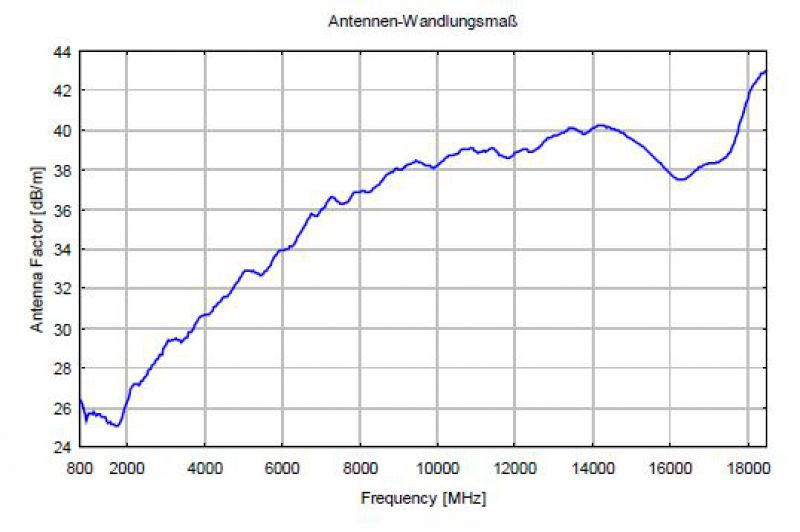

  • BBHA 9120 D - Typical Antenna Factor

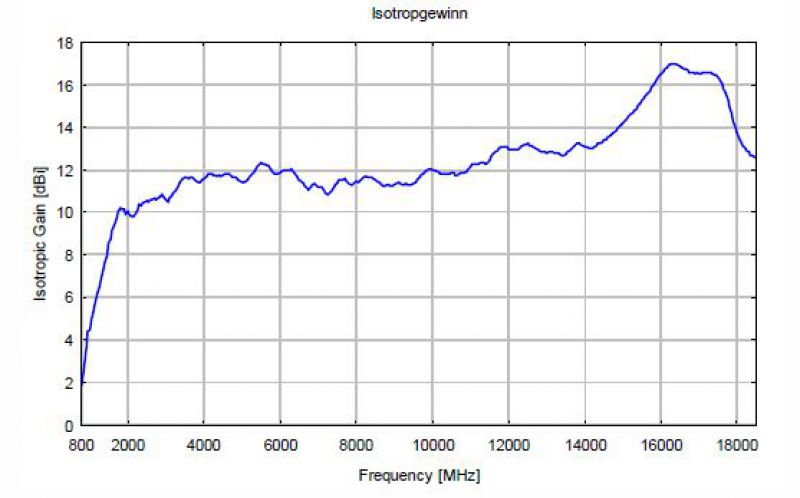

  • BBHA 9120 D - Typical Gain

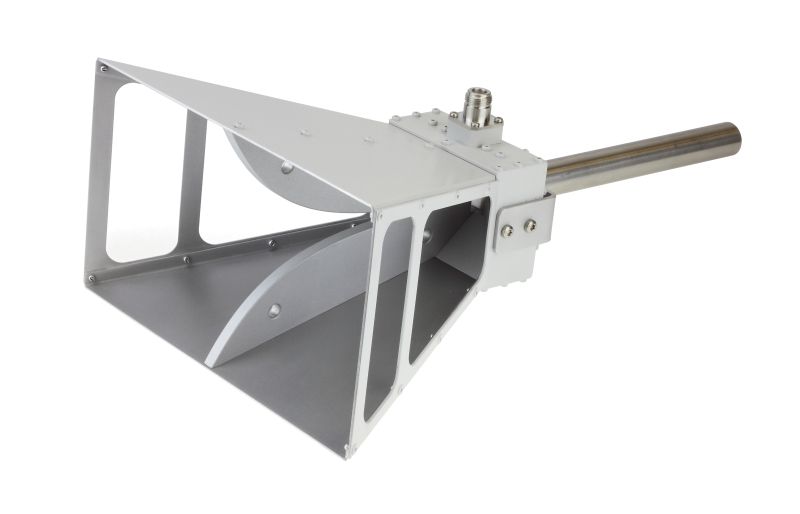

  • Schwarzbeck Broadband Horn Antenna BBHA9120D

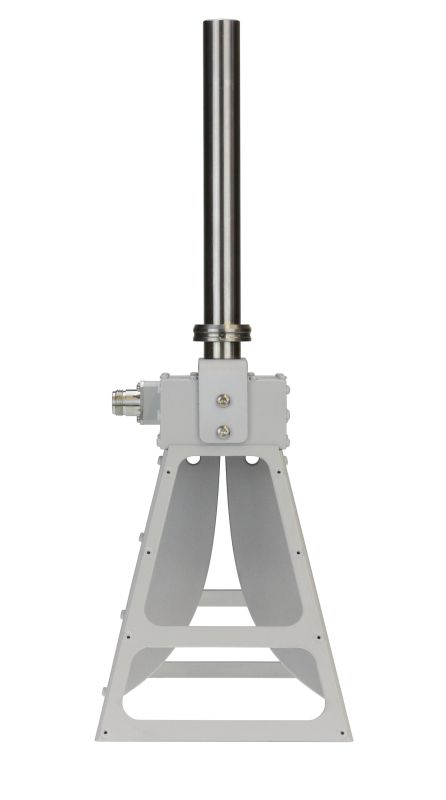

  • Schwarzbeck Double Ridged Horn Antenna BBHA 9120D

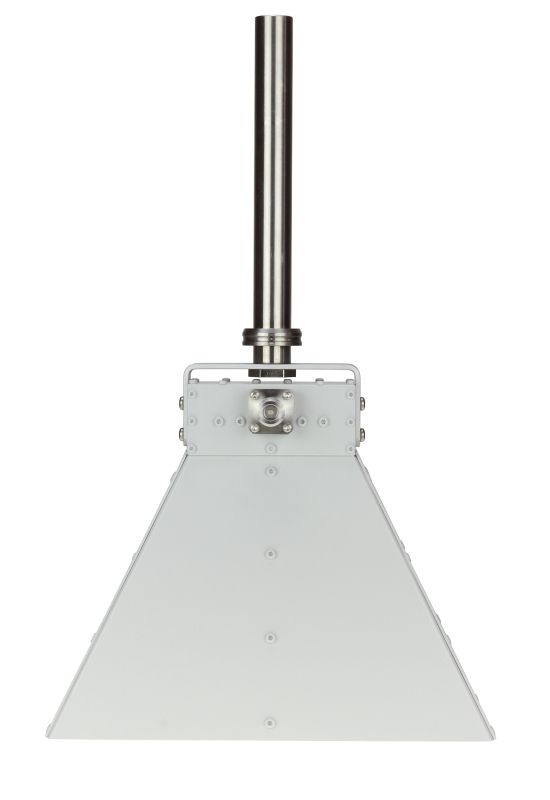

  • Schwarzbeck Double Ridged Horn Antenna BBHA 9120D_1



The broadband horn antenna BBHA 9120 D is a linear polarized double ridged horn antenna for the frequency range (0.8) 1 GHz to 18 GHz.







Frequency Range, nominal: 1 GHz - 18 GHz
Usable Frequency Range: 0.8 GHz - 18 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector: N - female
Impedance: 50 Ω nominal
Length: 195 (408) mm
Width: 250 mm
Height: 142 mm
Weight: 1.4 kg
Mounting: 22 mm Tube
Recommended Adapter:

AA 9202, AA9202 POM,
AA 9203, RA9215



Datasheet BBHA 9120D



Radiation Pattern









BBHA 9120 E - Double Ridged Broadband Horn Antenna

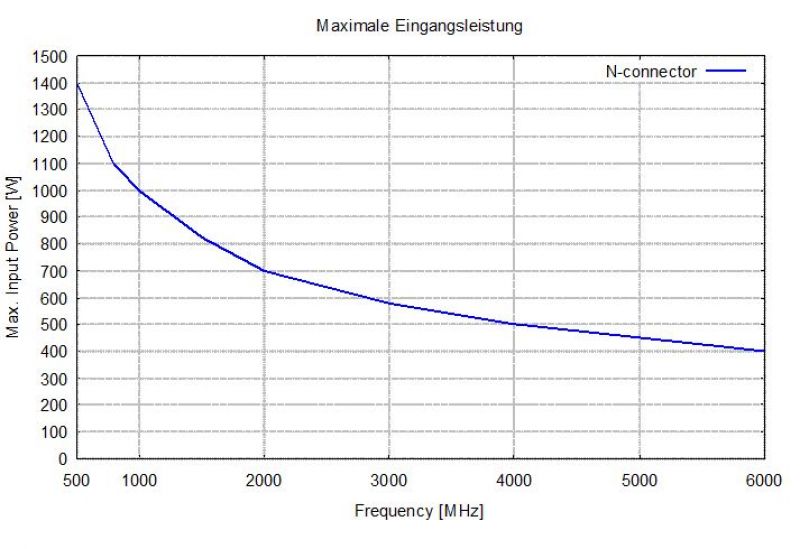

  • BBHA 9120 E - Max Input Power - N Connector

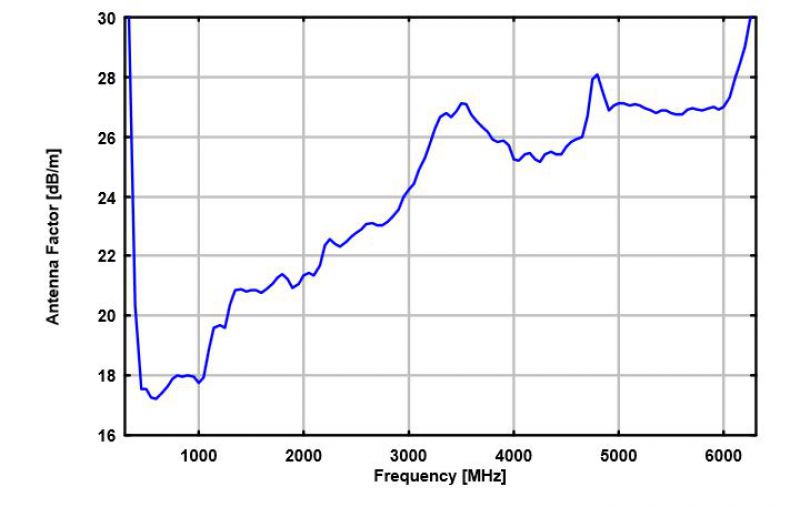

  • BBHA 9120 E - Typical Antenna Factor

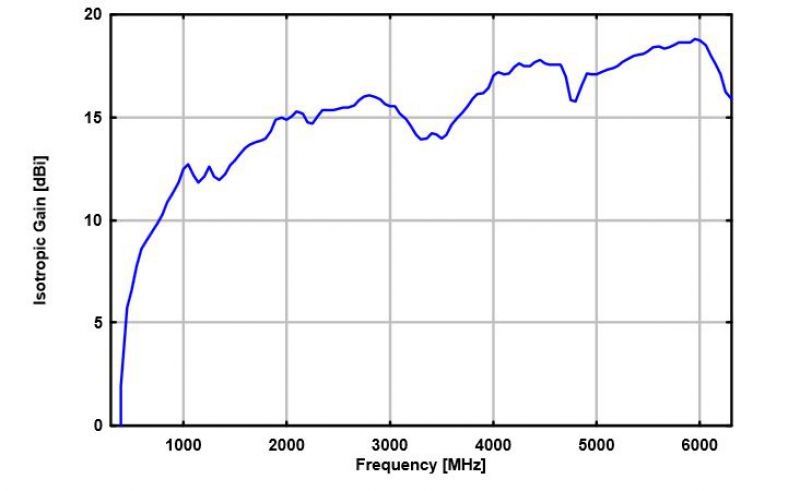

  • BBHA 9120 E - Typical Gain

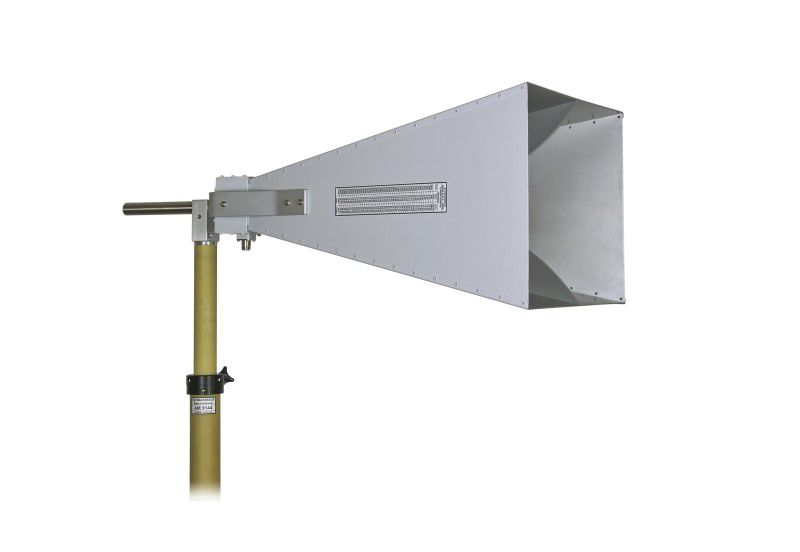

  • Horn Antenna BBHA 9120 E



The broadband horn antenna BBHA 9120 E is a linear polarized double ridged horn antenna for the frequency range (0.8) 1 GHz to 6 GHz.







Frequency Range, nominal: 0.5 GHz - 6 GHz
Usable Frequency Range: 0.5 GHz - 8 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector: N - female
Impedance: 50 Ω nominal
Length: 605 (820) mm
Width: 424 mm
Height: 314 mm
Weight: 4.1 kg
Mounting: 22 mm Tube
Recommended Adapter:

AA 9202, AA9202 POM,
AA 9203, RA9215



Datasheet BBHA 9120E



Radiation Pattern








BBHA 9120 F - Double Ridged Broadband Horn Antenna

  • BBHA 9120 F - Typical Antenna Factor
  • BBHA 9120 F - Typical Gain
  • BBHA 9120F Double Ridge Broadband Horn Antenna



Linear polarized double ridged broadband horn antenna for receive and transmit applications made of aluminium. An optional 7-16 connector is available for high power applications. Frequency range 0.2 GHz to 2 GHz.





Frequency Range, nominal: 0.2 GHz - 2 GHz (2.4 GHz)
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector:

N - female
7/16 - female (optional)

Impedance: 50 Ω nominal
Length: 690 mm
Width: 945 mm
Height: 960 mm
Weight: 16 kg
Mounting:

Center Mount M12, M10 and 3/8"

Recommended Accessories: PDG 9211 - Polarisation Swivel Fixture



Datasheet BBHA 9120F



Radiation Pattern



Option:

Opt. 7/16 - with 7/16-connector 3 kW

Opt. 1m - Very short telescopic tube to be inserted into the steel foot of AM 9144 to set BBHA 9120 F to a height of 1 m referring to the antenna center in both polarisations.



Datasheet BBHA 9120 F Opt. 1 m








BBHA 9120 G - Double Ridged Broadband Horn Antenna

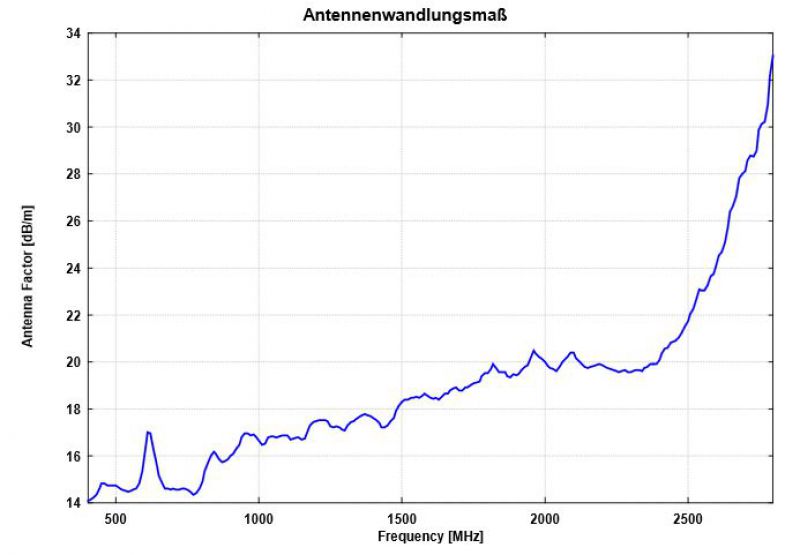

  • BBHA 9120 G - Typical Antenna Factor

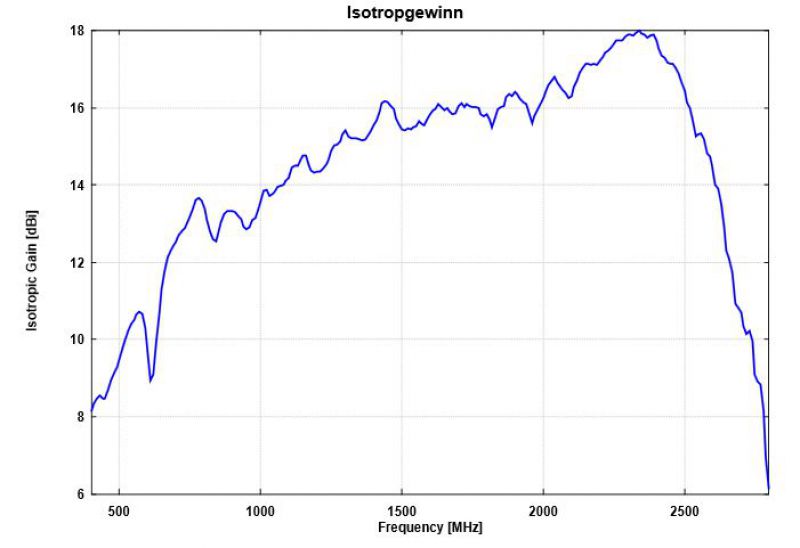

  • BBHA 9120 G - Typical Gain

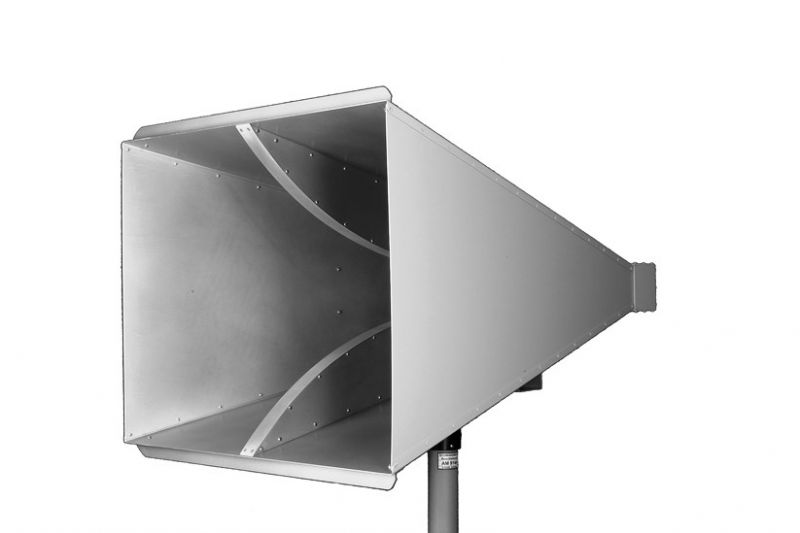

  • Schwarzbeck BBHA 9120 G Broadband Horn Antenna

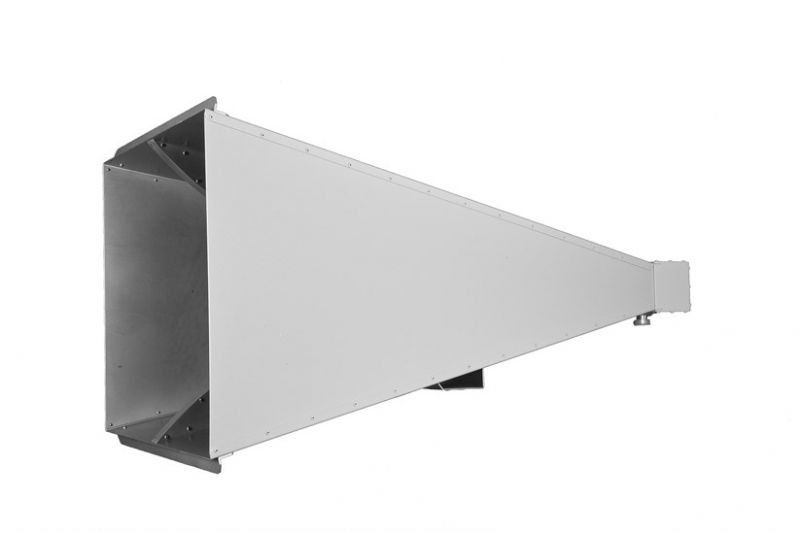

  • Schwarzbeck BBHA9120G Broadband Horn Antenna



The broadband horn antenna BBHA 9120 G is a linear polarized double ridged horn antenna for the frequency range 0.4 GHz to 2.8 GHz.





Frequency Range, nominal: 0.4 GHz - 2.8 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector: 7/16 - female
Impedance: 50 Ω nominal
Length: 990 mm
Width: 550 mm
Height: 460 mm
Weight: 10 kg
Mounting: Center Mount M12 and 3/8"
Recommended Accessories: PDG 9211 - Polarisation Swivel Fixture



Datasheet BBHA 9120G



VSWR









BBHA 9120 J - Broadband High Gain Horn Antenna

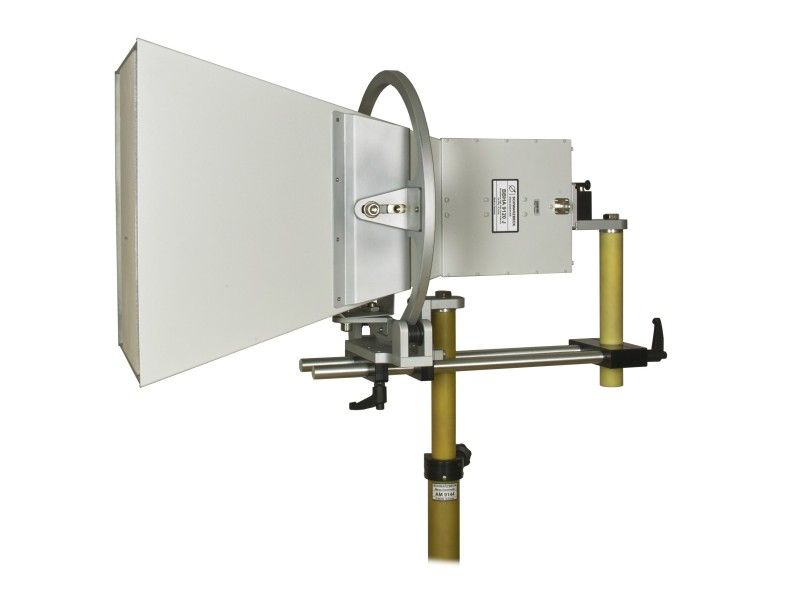

  • BBHA 9120 J - High Gain Horn Antenna with PDG 9211 - Polarisations Swivel Fixture

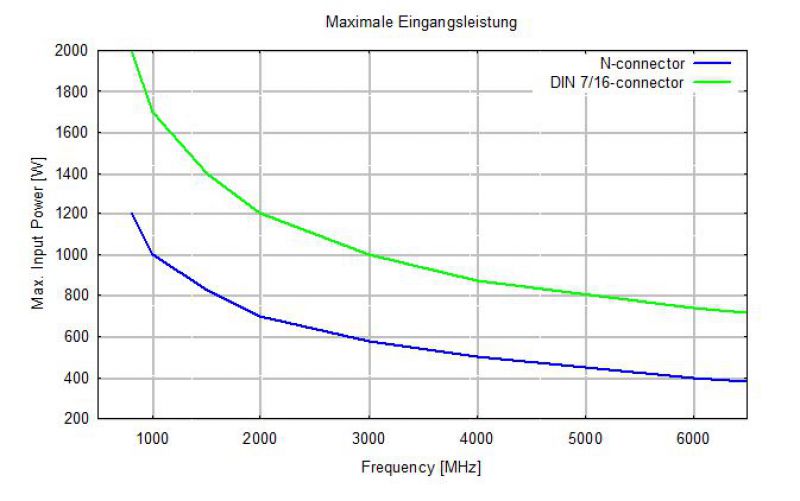

  • BBHA 9120 J - Max. Input Power

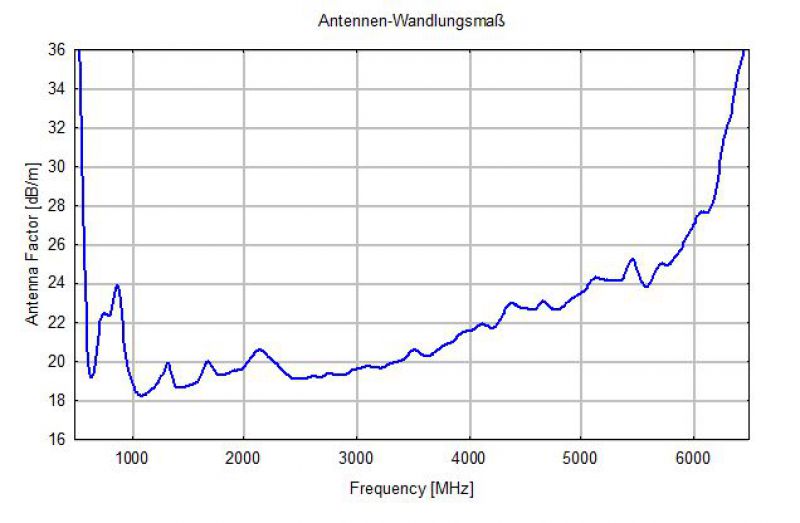

  • BBHA 9120 J - Typical Antenna Factor

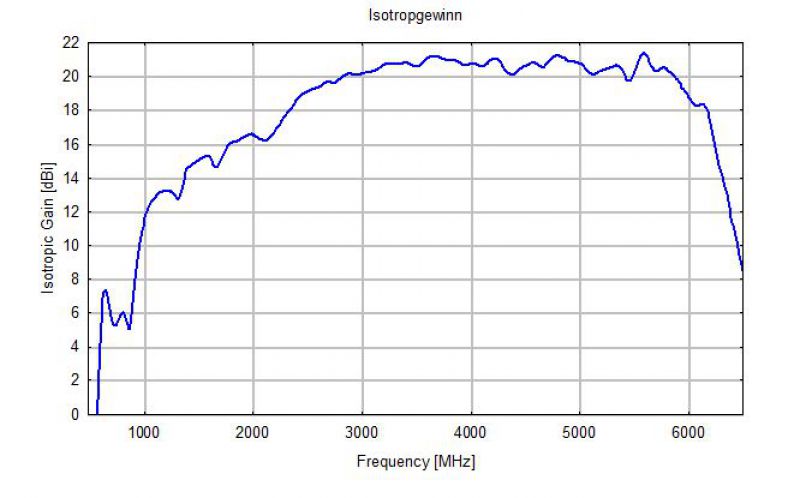

  • BBHA 9120 J - Typical Gain

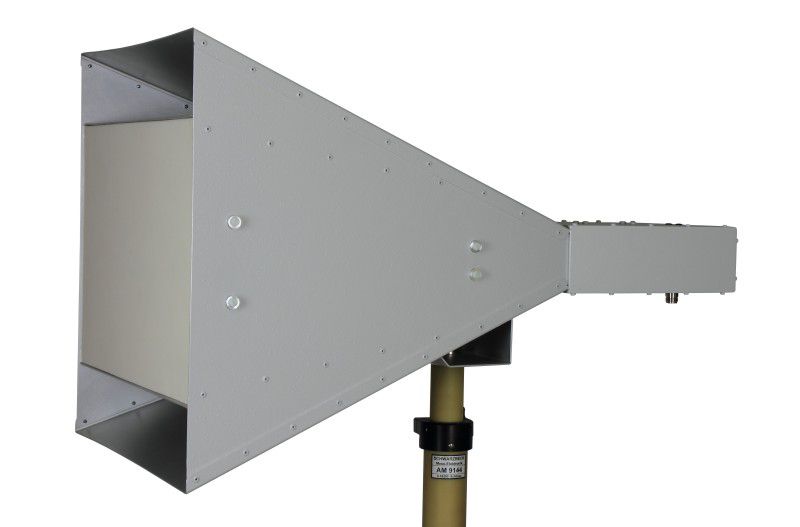

  • BBHA 9120 J



The broadband horn antenna BBHA 9120 J is a linear polarized high gain antenna for the frequency range 800 MHz to 6.2 GHz. The gain increases from 11 dBi at 1GHz up to more than 20 dBi at higher frequencies.







Frequency Range, nominal: 800 MHz - 6.2 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: see diagram
Connector: N (optional 7/16)
Impedance: 50 Ω nominal
Length: 680 mm
Width: 435 mm
Height: 440 mm
Weight: 7.6 kg
Mounting: Center Mount 3/8" + M12
Recommended Accessories: PDG 9211 - Polarisation Swivel Fixture





Datasheet BBHA 9120 J



Radiation Pattern



Fieldstrength













BBHA 9120 K - High Gain Horn Antenna

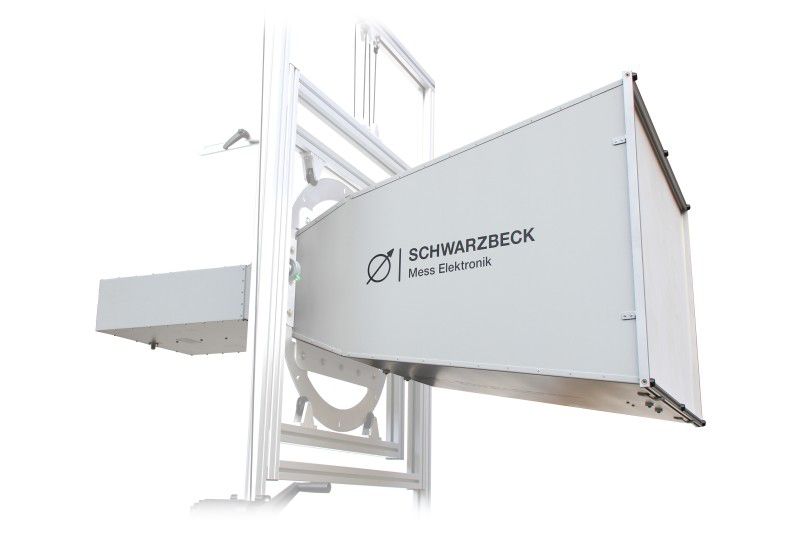

  • BBHA 9120 K - High Gain Horn Antenna

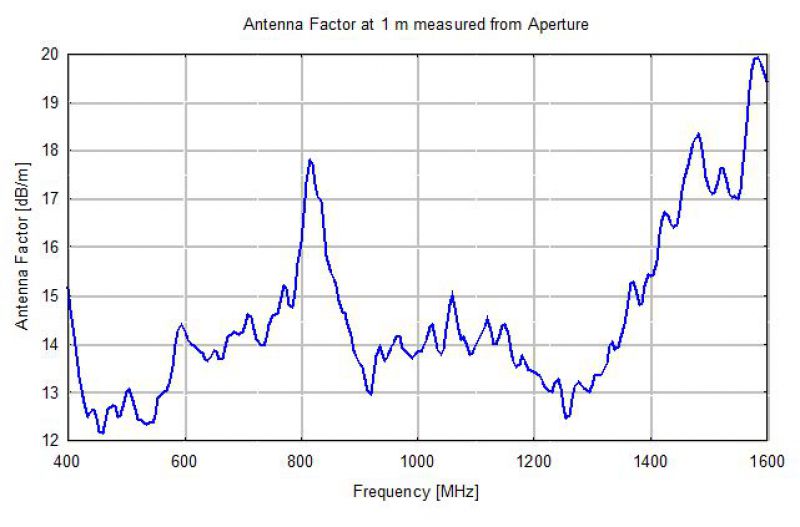

  • BBHA 9120 K - Typical Antenna Factor

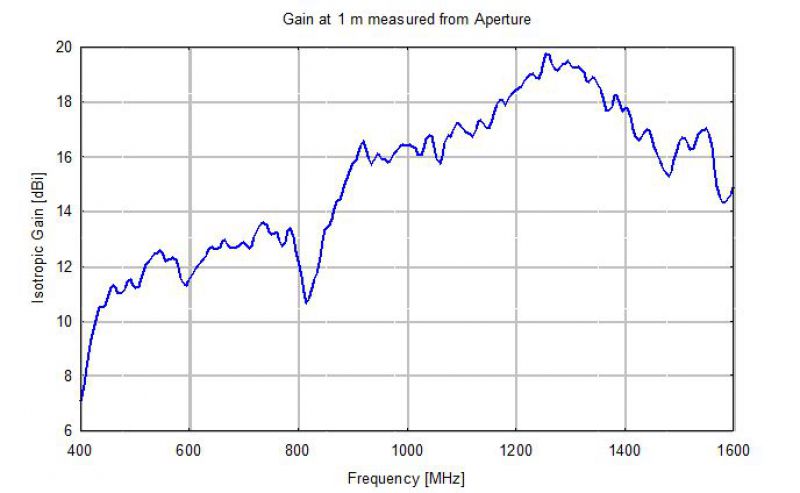

  • BBHA 9120 K - Typical Gain
  • BBHA 9120 K



The BBHA 9120 K is a linear polarized high gain horn antenna for immunity testing at short distances, especially optimized for

Automotive 600 V/m Pulse Radar Test 1.2 - 1.4 GHz.



Generates 600 V/m with < 250 W.





Frequency Range: 400 MHz - 1.6 GHz
Isotropic Gain: 11-20 dBi (450 MHz < f < 1.6 GHz) @ 1 m Aperture
Antenna Factor: 12-20 dB/m @ 1 m Aperture
Impedance: 50 Ω
Standing Wave Ratio SWR max: < 2.5 (450 MHz < f < 1.6 GHz)
Standing Wave Ratio SWR typical: < 1.5

Max. Input Power:N-Connector female

1 kW @ 1 GHz
0.8 kW @ 1.5 GHz
Max. Input Power:
Option: 7/16-Connector female

1.7 kW @ 1 GHz
1.4 kW @ 1.5 GHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Connector: N (optional 7/16)
Width x Length x Height: 1.85 x 1.1 x 0.8 m
Weight: 32.5 kg
Mounting: Flange
Standard:

General Motors: GMW3097
Ford: EMC-CS-2009





Datasheet BBHA 9120 K









BBHA 9120 L - Double Ridged Broadband Horn Antenna

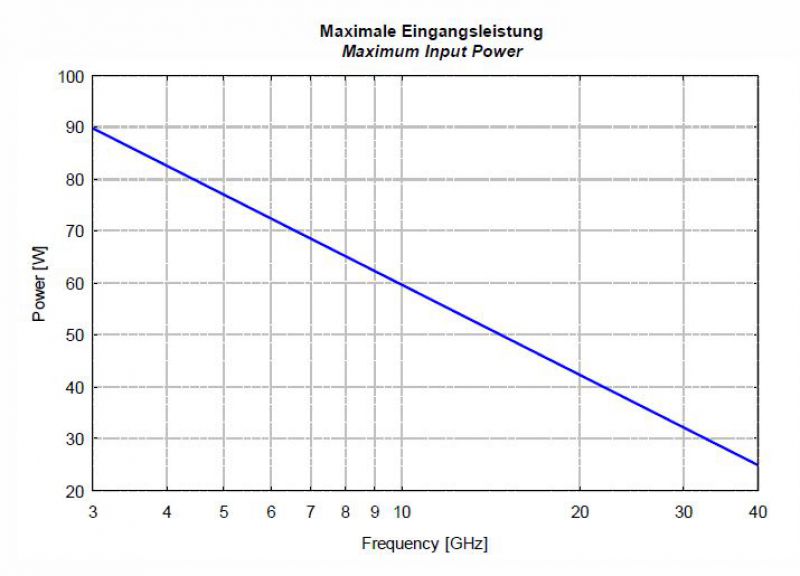

  • BBHA 9120 L - Max Input Power - 2.92 Connector

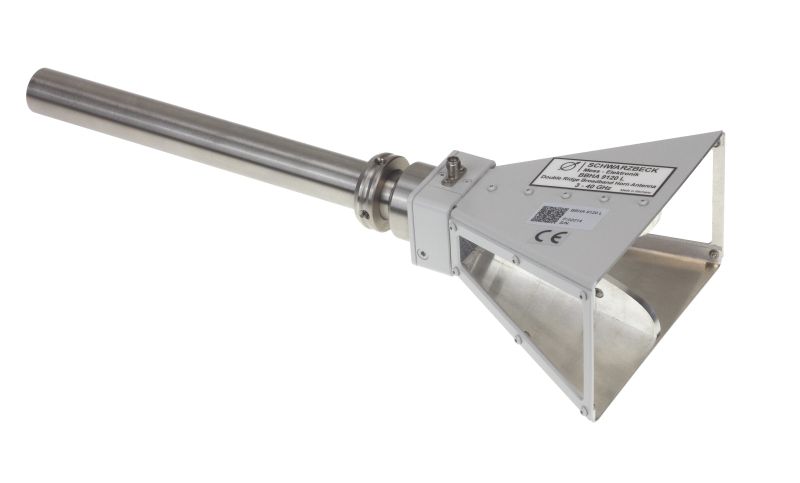

  • BBHA 9120 L



The broadband horn antenna BBHA 9120 L is a linear polarized double ridged horn antenna for the frequency range 3 GHz to 40 GHz.







Usable Frequency Range: 3 GHz - 40 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector: 2.92 - female
Impedance: 50 Ω nominal
Length: 109 (325) mm
Width: 124 mm
Height: 71 mm
Weight: 0.5 kg
Mounting: 22 mm Tube
Recommended Adapter:

AA 9202, AA9202 POM,
AA 9203, RA9215



Datasheet BBHA 9120L



Radiation Pattern









BBHA 9120 LF - Double Ridged Broadband Horn Antenna

  • BBHA 9120 LF - Max. Input Power
  • BBHA 9120 LF - Typical Antenna Factor
  • BBHA 9120 LF - Typical Gain
  • BBHA 9120 LF



The broadband horn antenna BBHA 9120 LF is a linear polarized double ridged horn antenna for the frequency range 0.7 GHz to 6 GHz.





Frequency Range, nominal: 0.7 GHz - 6 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector: N - female
Impedance: 50 Ω nominal
Length: 420 mm (620 mm)
Width: 270 mm
Height: 185 mm
Weight: 2.3 kg
Mounting: 22 mm tube



Datasheet BBHA 9120LF



Radiation Pattern








HWRD 650 - Double Ridged Waveguide Horn Antenna

NEW

  • HWRD 650 - Double Ridge Waveguide Horn Antenna with Options
  • HWRD 650 - Double Ridge Waveguide Horn Antenna_1
  • HWRD 650 - Double Ridge Waveguide Horn Antenna_2



Linear polarized double ridged broadband horn antenna for receive and transmit applications made of aluminium with waveguide flange.





Frequency Range, nominal: 6.5 - 18 GHz
Polarisation: linear
Pattern Type: directional
Isotropic Gain: 14 ... 20 dBi
Material: Aluminium
Max Power: 1 kW cont.
Connector: Waveguide-Flange WRD650D28
Impedance: 50 Ω nominal
Length: 282 mm
Width: 145 mm
Height: 117 mm
Weight: 0.41 kg
Options:
Mounting: Option 22 mm Tube
Adapter: Option N-female to waveguide WRD650



Datasheet HWRD650








HWRD 750 - Double Ridged Broadband Horn Antenna

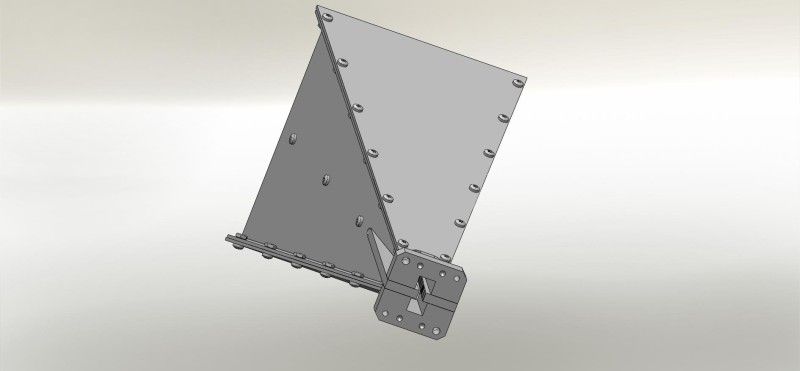

  • Schwarzbeck H WRD 750
  • Schwarzbeck H WRD750
  • Schwarzbeck HWRD750



The broadband horn antenna HWRD 750 is a linear polarized double ridged horn antenna for receive and transmit applications made of aluminium with waveguide flange. Frequency range 7.5 GHz to 18 GHz.





Frequency Range, nominal: 7.5 GHz - 18 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

1 kW const.

Connector: Waveguide flange WRD750D24
Impedance: 50 Ω nominal
Length: 241 mm
Width: 124 mm
Height: 104 mm
Weight: 390 g
Mounting: ---



Datasheet HWRD750
