VULB 9163 - TRILOG Broadband Antenna



VULB 9163 - TRILOG Broadband Antenna

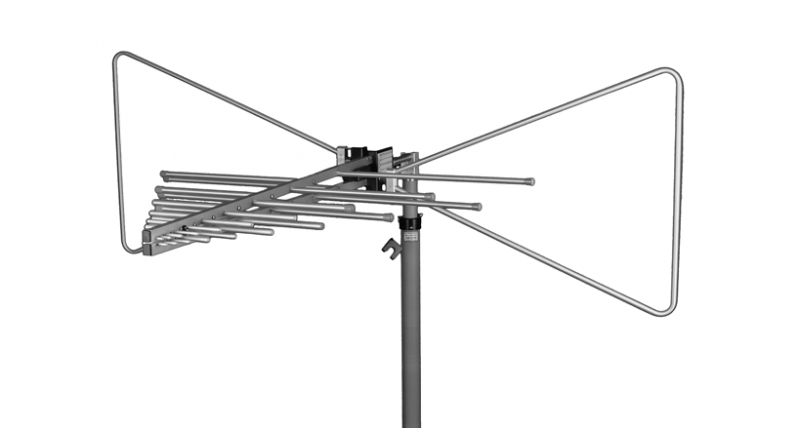

  • Schwarzbeck VULP 9163
  • Schwarzbeck VULP9163

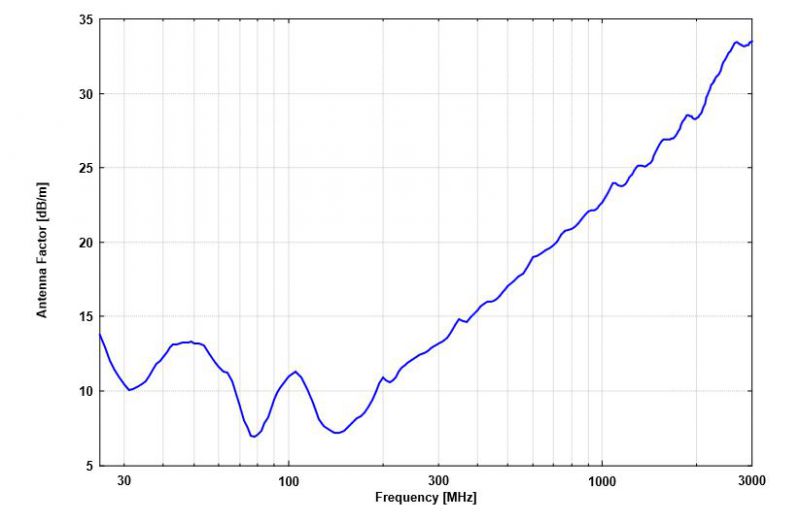

  • VULB 9163 - Typical Antenna Factor

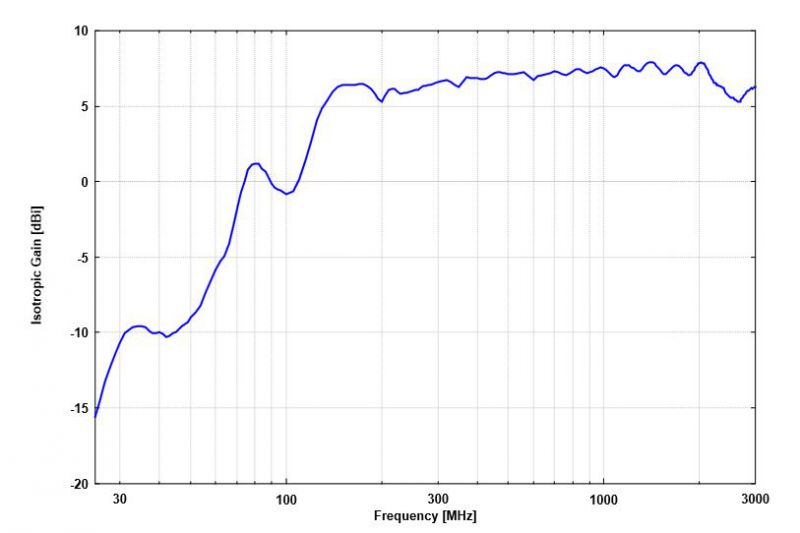

  • VULB 9163 - Typical Antenna Gain



Linear polarized Logarithmic Periodic Broadband Antenna combined with a 4:1 Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.





Frequency Range, nominal: 30 MHz - 3 GHz
Usable Frequency Range: 25 MHz - 4 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

200 W (intermitt.)
100 W (cont.)

Connector: N
Impedance: 50 Ω nominal
Length:

1.24 m

Width: 1.50 m
Height: 0.62 m
Weight: 3.1 kg
Mounting: 22 mm diameter tube
Recommended Adapter: AA 9202, AA 9203, RA 9215



Datasheet VULB 9163

Radiation Pattern

Short Measuring Distance

Fieldstrength
