HHS 5201-98 - Circular Helmholtz Coils

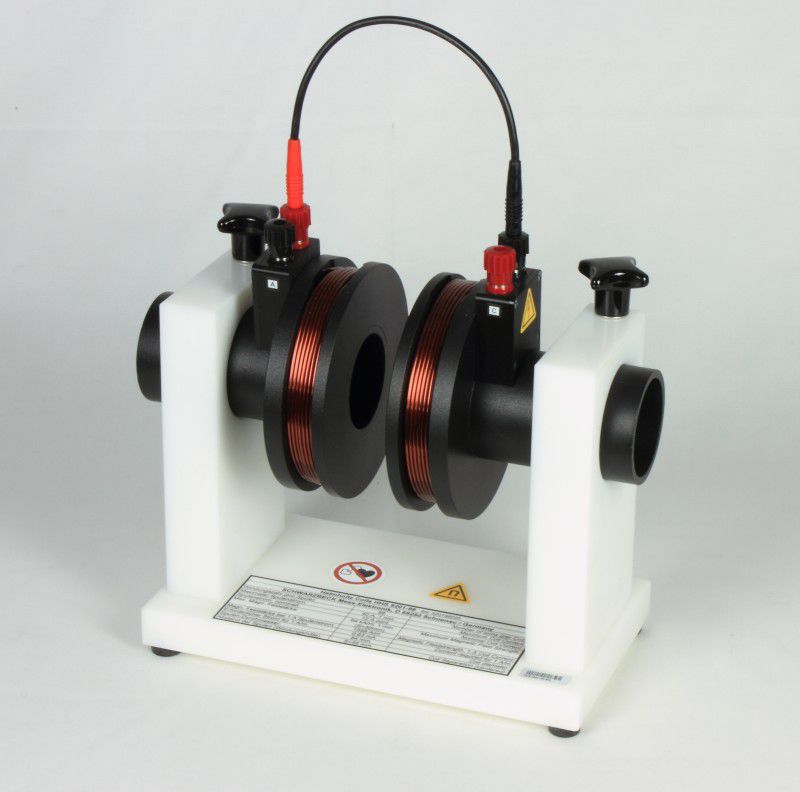

  • Schwarzbeck HHS 5201-98 Helmholtz Coil



Number of turns: 98
Maximum Coil Current: 40 A (1 min.)
15 A (15 min.)
Nominal Coil Current: 12 A continuous
Coil Spacings (centered): approx.  29 ... 95 mm
Max. Magn. Field Strength: 64 kA/m (1 min.)
Nominal Magn. Field Strength: 20 kA/m continuous
Magn. Field Strength, 1 A Coil Current:

1598 A/m

Conversion Current-Fieldstrength:

64.07 dB/m

Coil Diameter: 84 mm (58-110 mm)
Free Coil Distance for DuT: 0 ... 66 mm
Mechanical Dimensions: 240 x 240 x 130 mm
Terminals: 4 mm female
Inductance (Single Coil): 0.84 mH
Inductance (Coil Pair):

2.3 mH / 30 mm
2.0 mH / 50 mm
1.8 mH / 90 mm

Usable Frequency Range: DC - 200 kHz
Resonance Frequency: > 600 kHz

Weight:

4.1 kg



Datasheet HHS 5201-98
