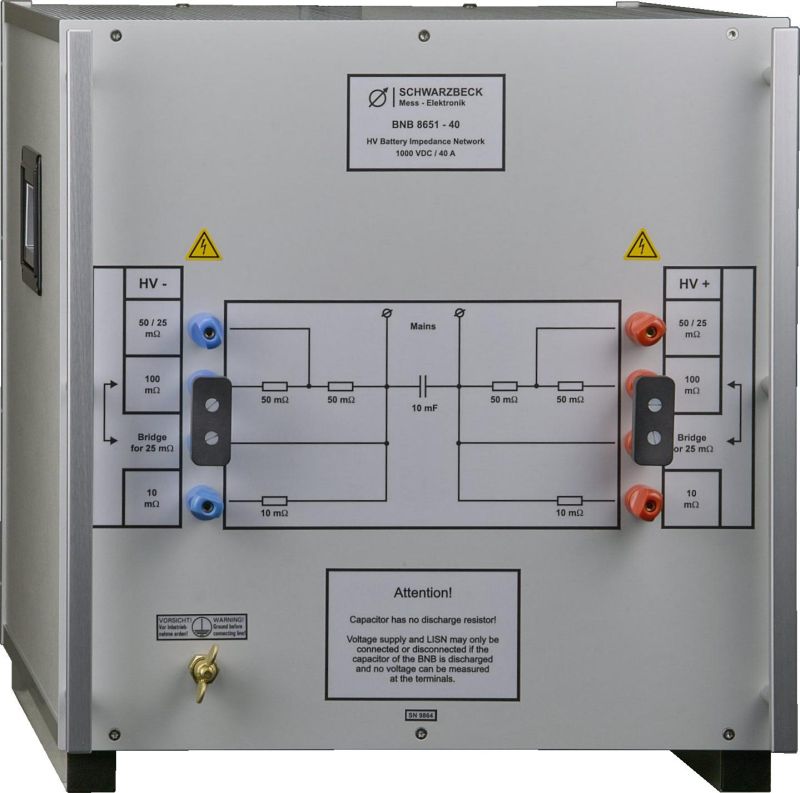

 BNB 8651-40 - Battery Simulator



  • BNB 8651-40





The purpose of this battery impedance network (BNB) is to provide electric power to the device under test, providing a standard impedance. It has been developed for automotive tests. A resistor that emulates the internal battery resistance is implemented in the BNB.



A battery could be simulated by different internal resistors. There are four possible values implemented: 2 x 100 mΩ, 2 x 50 mΩ, 2 x 25 mΩ and 2 x 10 mΩ (with one resistance per path).



Max. Voltage: 1000 VDC
Max. continuous current:

40 A

Max. current:
(limited time 1 min)

45 A / 200 mΩ ( 2x 100 mΩ)
45 A / 100 mΩ ( 2x 50 mΩ)
70 A / 50 mΩ ( 2x 25 mΩ)
70 A / 20 mΩ ( 2x 10 mΩ)
Impedance:

200 mΩ in series with 10 mF
100 mΩ in series with 10 mF
50 mΩ in series with 10 mF
20 mΩ in series with 10 mF
Self-inductance: 0.2 µH
Connector: Wing screws 7 mm
(for hook type lugs, wings screw is not detachable)
with 4 mm jacks
Weight: 36 kg
Dimensions B x H x T: 450 x 475 x 486 mm
